RACAMed

Eastern Mediterranean production

RACA-Med: Organic Residues Analyses

Cilician Agora G 198 amphorae

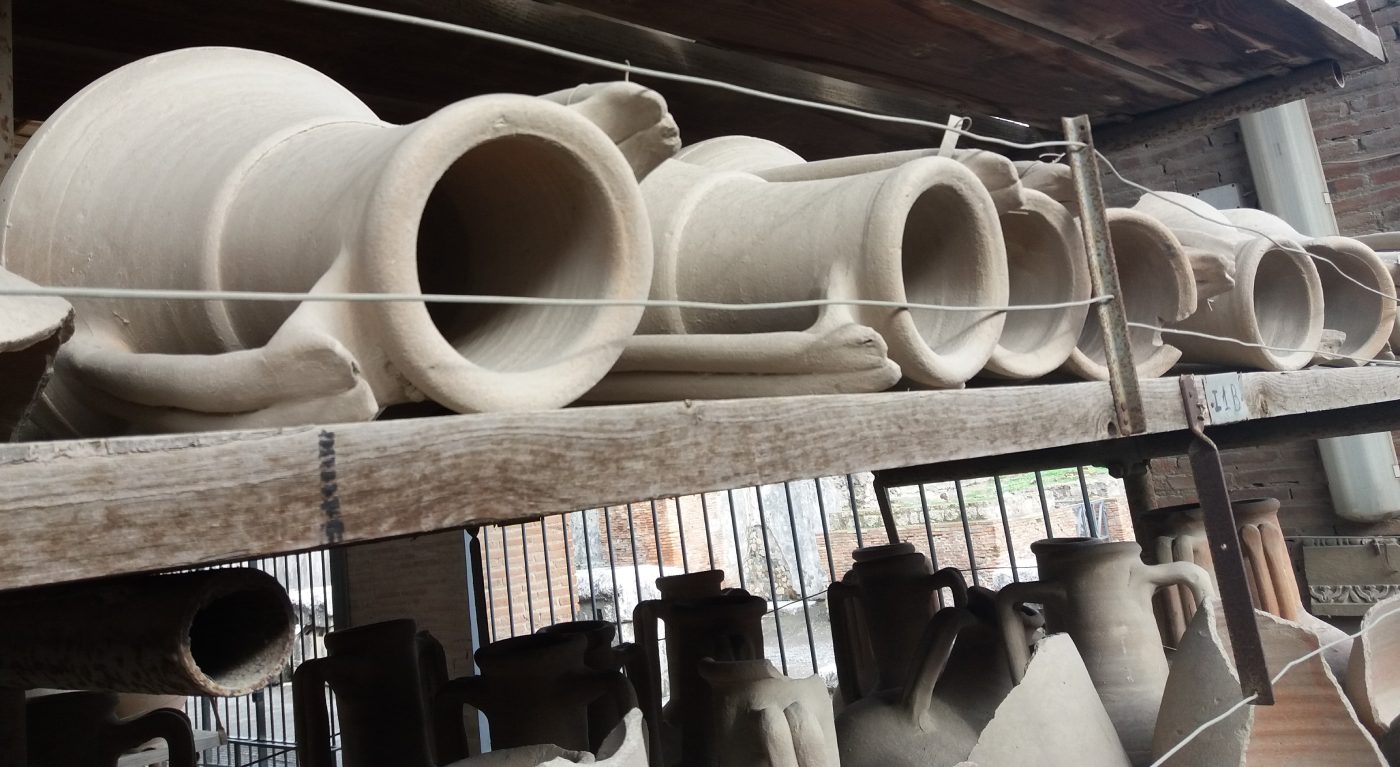

Agora G 198 amphorae in the Pompeii stores
Agora G 198 amphorae in the Pompeii stores

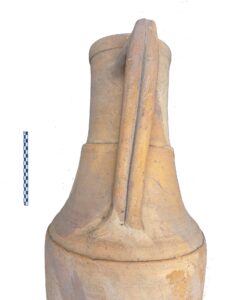

Pompeii: Sampled Agora G 198 amphora, front and detail of handles
Pompeii: Sampled Agora G 198 amphora, front and detail of handles

The large number of examples of so-called ‘pseudo-Koan’ Agora G 198 amphorae in the Pompeii stores has provided the opportunity to investigate the contents of this early Imperial type. Its relatively wide body, short solid toe (atypical of a fish amphora in the West) and unusual ‘horned’ long bifid handles have been taken to indicate a mixed, wine-based content (Empereur and Picon 1989-Collection de l’École Française de Rome 114, 223-248; Reynolds 2005-LRCW 1, 564-565, Plate 1; Reynolds 2021, 310-311). The Agora M 54 type is a similar, later form. The fabrics and survey evidence point to several production sites in eastern Cilicia.

Narrower-bodied, good copies of Koan wine amphorae were produced in the same region (possibly same workshops as Agora G 198). The wider body of G 198 must therefore indicate a special food conserved in wine (garum? olives? fruit?) and it was hoped that the analysis of a large number of examples would provide some answers.

For fish in wine, one is reminded of the large Pontic, Crimean amphora Zeest 75 (Opaiţ 2021, 366-368, figs. 9-11). Their large body, wide neck and bifid handles, as well as place of manufacture (some are associated with the extensive cetariae of Pantikapeion) suggest they carried not only fish, perhaps large cuts, combined with wine (Reynolds 2021).

The mixing of wine and fish may have been detected by Notarstefano and Lettieri (2021, 136-137) with respect to the samples of their Group 1 amphorae analysed from the Nuovo Mercato di Traiano (Rome), which included Lusitanian (samples 3-6; 8: with fish bones) and Tripolitanian amphorae (sample 7: with fish bones).

For samples of amphorae in their Group 3 (samples 16-21), which apparently included Agora M 54 and possibly an early LRA 2, olive oil was suggested: Agora M 54 (base, NMT 1815: sample 16; wall, NMT 1739: sample 17; wall, NMT 1397: sample 18) and Riley-Benghazi fig. 203, which is a strange attribution (the type piece is a cupped rim with a pinched top) (base, NMT 3072: sample 19; wall, NMT 3072: sample 20) and Riley 203 similis (wall, NMT 374: sample 21). Riley 203 may be a late Haltern 70, Knossos 15 (a variant of Dr 24), or a proto LRA 2 like those found in the Testaccio and in Aquileia (Reynolds 2021, fig. 23d).

As part of the RACA-Med project, ten vessels of Agora G 198 were sampled. As expected, there were wine residues and these were combined with other vegetal and animal substances. Further work and experimentation is underway to clarify the nature of these non-wine products.

‘Carrot’ amphorae

Pompeii: ‘Carrotamphorae

Reynolds et al. 2005, BEY 015 ‘carrot’ amphorae. Type A (1-11) and Type B (12-20)

Fig6_Vipard typology
Reynolds et. 2005, from Vipard (1995, fig. 1)

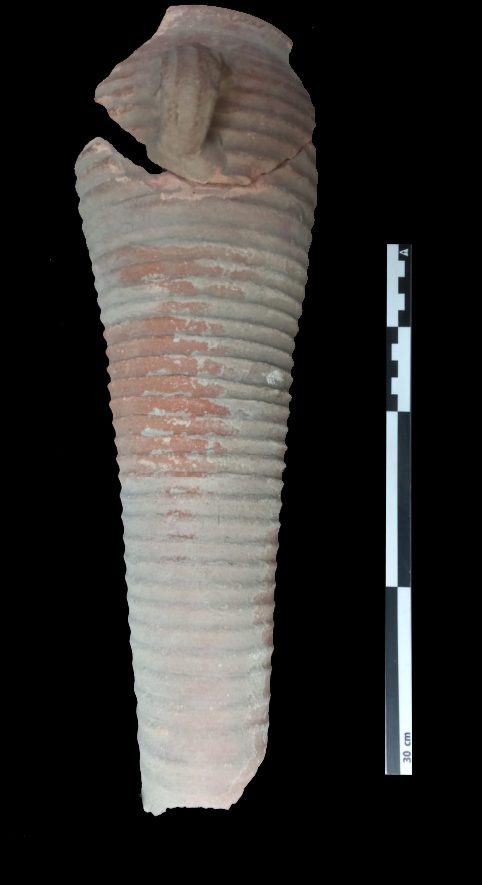

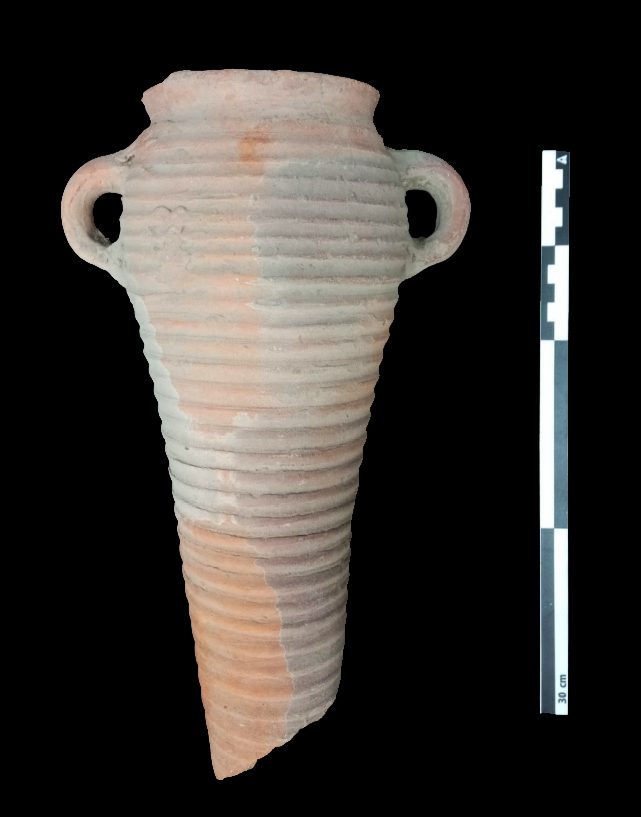

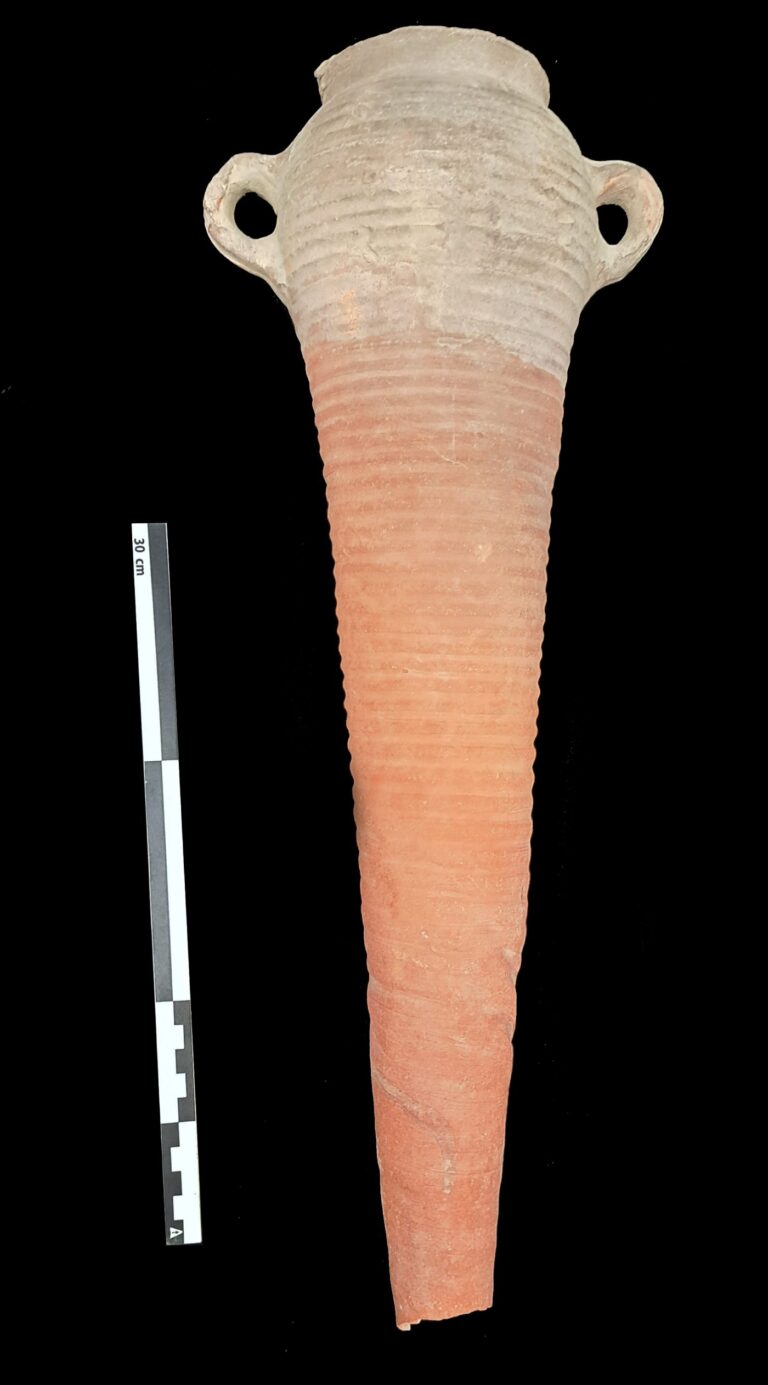

Five Schöne-Mau (Pompeii) XV/Peacock and Williams Class 12 so-called ‘carrot’ amphorae were sampled from the stores in Pompeii (figures 1-4), where they appear to be not common, in contrast to east Cilician Agora G 198. One of the major production centres of these small, narrow containers in the 1st century AD was Beirut, just outside the Hellenistic walls (Site BEY 015), where excavations discovered a workshop producing not only these (figure 5) but also the Beirut amphora type (which carried wine: Woodworth and Reynolds 2021) and complex range of other forms including Reynolds AM 72, a form probably imitating the Dressel 14 fish amphora, as well as a wide range of cooking pots, bowls, lids, drains and thin-walled wares (Reynolds et al. 2008-2009).



The carrot amphora, with ring handles on the shoulder, simple rolled or band rim and tronco-conical body, is in the ‘hole-mouth jar’ local Levantine-Phoenician tradition that continued into the Roman period, like the larger Hellenistic to 3rd century Tyrian amphora or the Kingsholm 117 type, close to the Tyrian shape (Figure 7), and Gazan amphorae of the 2nd to 7th century. Both carrot amphorae and Kingsholm 117 have been found in large numbers in Rome (Rizzo 2014, 340-341, 343-344; Contino and D’Alessandro 2014). Carrot amphorae have a much wider and more plentiful distribution in Gaul, the Rhine provinces and Britain (153 examples were found in the excavations at Colchester in the 1930s) as well as reaching the Danube provinces from the 1st to 3rd century (for more details, see Reynolds et al 2008-2009, with references).



Chemical analyses of carrot amphorae from BEY 015 and imports in southern Gaul provide evidence that some of the latter were Beirut products but others were not. Indeed, the range of published typological variants, such as those in Vienne, suggest that carrot amphorae were produced in other locations (Vipard 1995; Lemaître et al. 2005; Reynolds et al. 2008-2009) (Figure 6): here one is reminded of imports of likely North Palestinian small amphora Augst 46-47 (Figure 8) or the larger Celéstins 1A/Colchester 105/Peacock and Williams Class 65 that also found their way to southern Gallic ports and travelled inland to sites such as Lyons and Vienne (Lemaître 2000) (Figure 9). These other forms have fabrics close to those of North Palestinian Agora M 334, whose kilns have been found west of Galilee. Caesarea is likely to have been one of the ports of export for these. Some (or perhaps all) of the sampled examples from Pompeii were Beirut products.



As for their contents, it has been argued (Reynolds et al. 2008-2009, 76-77) that the carrot amphora is the ‘twisted cone’ (‘torta meta’) carrying ‘cottana’ (small figs) in Martial (Epigrams, 13.28; 7.53), who also refers to ‘Damascene’ or ‘Syrian’ dried damson plums (i.e. prunes: ‘damascena’ and ‘syriaca pruna’) carried in ‘pointed jars’ (‘acuta testa’) (Martial, Epigrams, 5.18) and these are the ‘vas Damascenorum’ that he offered as a gift for the Saturnalia festival (Epigrams, 13.29). So, like one of the Colchester 105/Célestins 1 found at Avenches containing carbonized dates, it seems likely that the carrot amphora carried various types of dried fruit (figs, prunes and dates).



It seemed opportune to test this hypothesis by sampling the Pompeian vessels. Could these dried fruits leave traces of their presence in the amphorae? The results of the chemical residues were yet again surprising, as they appear to indicate the presence of wine, though further tests are necessary to determine whether this is simply reuse. Could there be a connection with the production of Kingsholm 117, given their shared presence in Rome and the likelihood that the former contained wine, as surely did its counterpart in Tyre? Clearly, more residues analyses of carrot amphorae, such as those in Gaul, and both carrot amphorae and Kingsholm 117 in Rome are needed to provide some answers to these questions.
